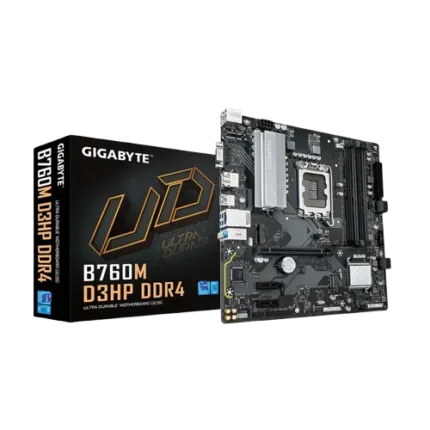

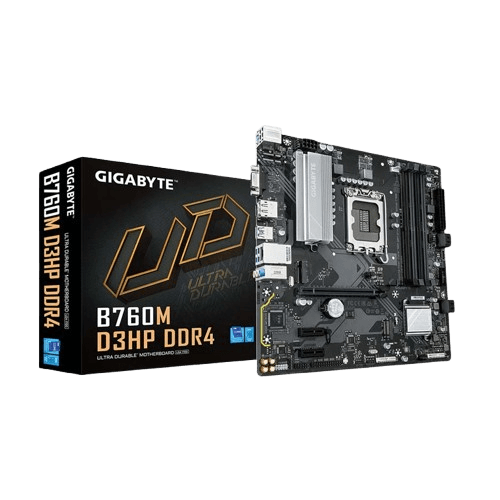

Gigabyte B760M D3HP DDR4 Intel Motherboard
16,300.00৳
Description
Product Overview
The Gigabyte B760M D3HP DDR4 is a versatile Micro-ATX motherboard built on the Intel B760 Express chipset with the LGA1700 socket. Engineered to support 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, it offers a well-balanced platform for users who want modern platform stability, extensive memory expansion, and fast data transfers while utilizing cost-effective DDR4 RAM.
Equipped with a Hybrid Digital VRM design featuring enlarged VRM heatsinks, the board ensures reliable thermal performance and clean power delivery during continuous operation. Unlike entry-tier dual-slot boards, it includes four DDR4 DIMM slots supporting up to 128GB of dual-channel system memory with Intel® XMP support. For fast storage and expansion, the board houses dual NVMe M.2 slots (PCIe 4.0 x4 support) along with a primary PCIe 4.0 x16 graphics card slot equipped with PCIe EZ-Latch for easy GPU removal.
Built with Gigabyte Ultra Durable™ components, it features anti-sulfur resistors, Q-Flash Plus for driverless BIOS updates (without CPU, RAM, or graphics card installed), and Smart Fan 6 thermal management with multiple temperature sensors and hybrid fan headers. Featuring high-speed Realtek GbE LAN, high-definition audio with an Audio Noise Guard, and multiple display outputs (HDMI and DisplayPort), it serves as a dependable base for work and gaming systems backed by a 3-year official brand warranty.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B760M D3HP DDR4 |
| Chipset | Intel B760 Express |
| CPU Socket | LGA1700 |
| Processor Support | 12th, 13th, and 14th Generation Intel Core / Pentium Gold / Celeron Processors |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Power Delivery | Hybrid Digital VRM Design with Dedicated VRM Heatsink |
| Memory Type | DDR4 SDRAM |
| Memory Slots | 4 x DDR4 DIMM Slots |
| Max Memory Capacity | Up to 128GB (Dual-Channel Architecture, XMP Supported) |
| Storage Connectors | 2 x M.2 Slots (PCIe 4.0 x4) + 4 x SATA 6Gb/s ports |
| Expansion Slots | 1 x PCIe 4.0 x16 slot + 2 x PCIe 3.0 x1 slots |

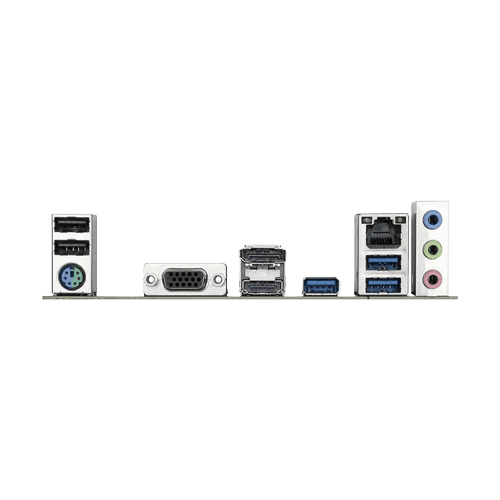

| Graphics Output | Integrated Intel HD Graphics support (1 x HDMI, 1 x DisplayPort, 1 x D-Sub) |
| Networking | Realtek GbE LAN Chip with Bandwidth Management (10/100/1000 Mbps) |
| USB Connectivity | USB 3.2 Gen 1 (Type-A & Type-C headers), USB 2.0 |
| BIOS Feature | Q-Flash Plus (Update BIOS without CPU, RAM, or Graphics Card) |
| Cooling & Protection | Smart Fan 6, PCIe EZ-Latch, VRM Heatsink, Anti-Sulfur Resistors |
| Audio | Realtek High Definition Audio (7.1-Channel) with Audio Noise Guard |
| Color | Black |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
