Gigabyte B650 UD AX DDR5 AMD Motherboard
19,900.00৳
Description
Product Overview

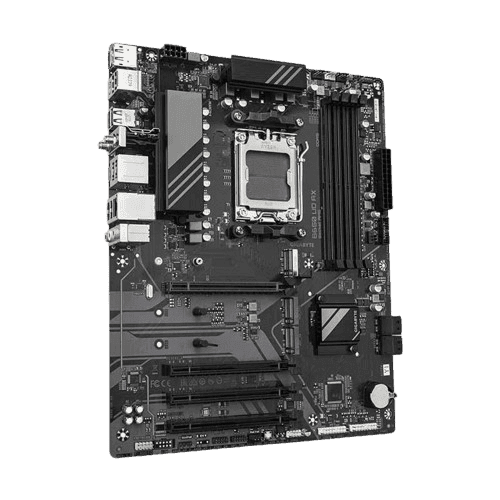

The Gigabyte B650 UD AX is a full-sized ATX motherboard built around the AMD B650 chipset. Designed for the Socket AM5 platform, it delivers native support for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors, making it an excellent future-proof foundation for high-performance gaming setups and content creation workstations.
Constructed under Gigabyte Ultra Durable™ standards, the board incorporates a 6+2+2 Phase Digital VRM solution with dedicated heatsinks to maintain optimal thermal stability under load. It features four DDR5 DIMM slots supporting up to an massive 256GB of system RAM with overclocking speeds up to 8000 MT/s (O.C.) and full AMD EXPO™ and Intel® XMP memory profile support. For high-speed storage, the board offers triple M.2 slots (1 x PCIe 5.0 x4 and 2 x PCIe 4.0 x4) along with four SATA 6Gb/s connectors supporting RAID configurations.
The ATX layout provides expanded PCIe expansion slots and versatile connectivity, including integrated Wi-Fi 6 (802.11ax), Bluetooth 5.0, and Realtek GbE LAN. Additional DIY-friendly features include PCIe EZ-Latch for simple graphics card removal, Q-Flash Plus for driverless BIOS updates (without CPU or RAM installed), and Smart Fan 6 thermal management.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B650 UD AX |
| Chipset | AMD B650 |
| CPU Socket | Socket AM5 |
| Processor Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Power Delivery | 6+2+2 Phases Digital VRM Solution with Heatsink |
| Memory Type | DDR5 SDRAM |
| Memory Slots | 4 x DDR5 DIMM Slots |
| Max Memory Capacity | Up to 256GB (Dual-Channel Architecture, up to 8000+ MHz O.C., AMD EXPO™ & XMP Supported) |
| Storage Connectors | 3 x M.2 Slots (1 x PCIe 5.0 x4 + 2 x PCIe 4.0 x4) + 4 x SATA 6Gb/s ports (RAID 0, 1, 10) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (integrated in CPU) + 3 x PCIe 3.0 x1 slots |
| Graphics Output | Integrated AMD Radeon™ Support (1 x HDMI 2.1, 1 x DisplayPort 1.4) |
| Wired Network | Realtek RTL8111H GbE LAN Chip (1 Gbps / 100 Mbps / 10 Mbps) |
| Wireless & Bluetooth | Realtek RTL8851 Wi-Fi 6 (802.11ax 2.4/5 GHz Dual-Band) + Bluetooth 5.0 |
| USB Connectivity | Rear: USB Type-C (3.2 Gen 1), 2 x USB 3.2 Gen 2 Type-A, 6 x USB 2.0; Internal headers for front USB Type-C & Type-A |
| BIOS & Features | Q-Flash Plus Button, PCIe EZ-Latch, Smart Fan 6, RGB Fusion (ARGB headers) |
| Audio | Realtek ALC897 High Definition Audio (7.1-Channel) CODEC |
| Body Color | Black |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
