Gigabyte B760M D3HP (Wi-Fi 6) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard #B760M D3HP WIFI6 DDR5
Your Delivery options
Courier delivery
Courier will deliver to the specified address
2-3 days From 120BDT
Gigabyte B760M D3HP (Wi-Fi 6) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard #B760M D3HP WIFI6 DDR5
18,900.00৳
Description
Product Overview

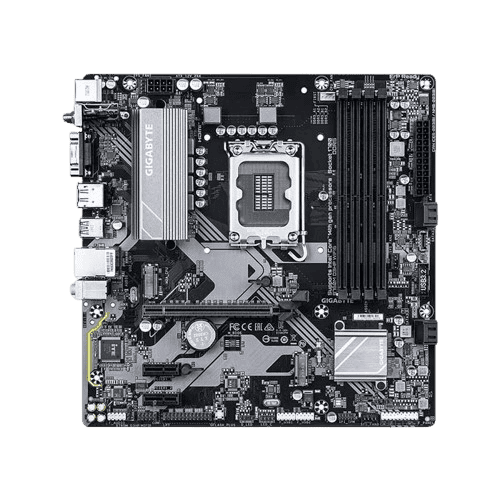

The Gigabyte B760M D3HP (Wi-Fi 6) is a versatile Micro-ATX motherboard powered by the Intel B760 Express chipset with the LGA1700 socket. Engineered to support 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, it provides a feature-rich, high-performance base for mainstream workstation builds, home offices, and mid-range gaming PCs.
Featuring a 6+1+1 Phases Hybrid Digital VRM design accompanied by dedicated VRM heatsinks, the board ensures reliable power delivery and effective heat management during heavy workloads. Unlike 2-DIMM entry boards, it includes four DDR5 DIMM slots supporting up to 192GB of dual-channel system memory with high-speed memory overclocking (up to 5600 MT/s and beyond) and Intel® XMP profile integration. Storage expansion features dual M.2 slots (up to PCIe 4.0 x4 speeds) alongside four SATA 6Gb/s ports with RAID support.
Built according to Gigabyte Ultra Durable™ construction standards, it features PCIe EZ-Latch for easy GPU removal, Q-Flash Plus for driverless BIOS updates without CPU/RAM/GPU installation, and Smart Fan 6 thermal control. Built-in wireless connectivity is provided via Realtek Wi-Fi 6 (802.11ax) paired with Bluetooth 5.3, alongside GbE LAN for fast networking. Multi-display connectivity (HDMI 2.1 and DisplayPort 1.4) and onboard ARGB headers round out the motherboard, backed by a 3-year official brand warranty.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B760M D3HP (Wi-Fi 6) |
| Chipset | Intel B760 Express |
| CPU Socket | LGA1700 |
| Processor Support | 12th, 13th, and 14th Generation Intel Core / Pentium Gold / Celeron Processors |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Power Delivery | 6+1+1 Phases Hybrid Digital VRM with Dedicated VRM Heatsink |
| Memory Type | DDR5 SDRAM |
| Memory Slots | 4 x DDR5 DIMM Slots |
| Max Memory Capacity | Up to 192GB (Dual-Channel Architecture, up to 5600+ MHz, Intel® XMP Supported) |
| Storage Connectors | 2 x M.2 Slots (PCIe 4.0 x4) + 4 x SATA 6Gb/s ports (RAID 0, 1, 5, 10 supported) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (integrated in CPU) + 2 x PCIe 3.0 x1 slots |
| Graphics Output | Integrated Intel HD Graphics support (1 x HDMI 2.1, 1 x DisplayPort 1.4) |
| Wired Network | Realtek GbE LAN Chip (1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | Realtek Wi-Fi 6 (802.11ax 2.4/5 GHz Dual-Band) + Bluetooth 5.3 |
| USB Connectivity | USB 3.2 Gen 1 (Front Type-C & Rear Type-A ports), USB 2.0/1.1 ports |
| BIOS & Features | Q-Flash Plus Button, PCIe EZ-Latch, Smart Fan 6, RGB Fusion (ARGB headers) |
| Audio | Realtek High Definition Audio (7.1-Channel) CODEC |
| Body Color | Black |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
