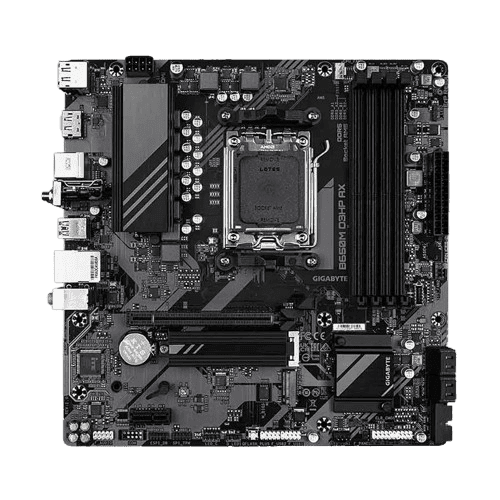

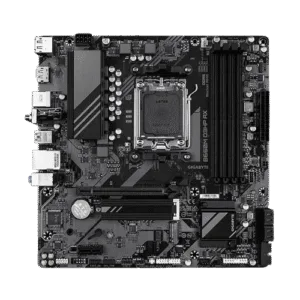

Gigabyte B650M D3HP AX (Wi-Fi 6E) DDR5 Motherboard
Your Delivery options
Courier delivery
Courier will deliver to the specified address
2-3 days From 120BDT
Gigabyte B650M D3HP AX (Wi-Fi 6E) DDR5 Motherboard
18,900.00৳
Description
Product Overview
The Gigabyte B650M D3HP AX (Wi-Fi 6E) is a feature-rich, compact Micro-ATX motherboard built around the AMD B650 chipset. Designed for the modern Socket AM5 platform, it provides native support for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors. It offers high performance, future-proof memory capacity, and robust wireless connectivity in a sleek, all-black PCB design.
Equipped with a 5+2+2 Phase Digital VRM solution and dedicated heatsinks, the motherboard delivers consistent power delivery and effective thermal management during demanding workloads. It features four DDR5 DIMM slots supporting up to 192GB of dual-channel RAM with overclocking speeds reaching up to 7600 MT/s (O.C.) alongside AMD EXPO™ and Intel® XMP profile support. Storage expansion includes dual M.2 slots (up to PCIe 4.0 x4 speeds) and four SATA 6Gb/s connectors with RAID support.
Built with Gigabyte Ultra Durable™ standard features, the board includes PCIe EZ-Latch for quick GPU releases, Q-Flash Plus for driverless BIOS updates without installing a CPU/RAM/GPU, and Smart Fan 6 cooling control. Networking is top-tier with integrated Realtek Wi-Fi 6E (6GHz tri-band), Bluetooth 5.3, and Realtek 2.5GbE LAN. It also stands out in video output capability with triple display support via two DisplayPorts and one HDMI port.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B650M D3HP AX (Wi-Fi 6E) |
| Chipset | AMD B650 |
| CPU Socket | Socket AM5 |
| Processor Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Power Delivery | 5+2+2 Phases Digital VRM Solution with Heatsink |
| Memory Type | DDR5 SDRAM |
| Memory Slots | 4 x DDR5 DIMM Slots |
| Max Memory Capacity | Up to 192GB (Dual-Channel Architecture, up to 7600+ MHz O.C., AMD EXPO™ & XMP Supported) |
| Storage Connectors | 2 x M.2 Slots (PCIe 4.0 x4) + 4 x SATA 6Gb/s ports (RAID 0, 1, 10 supported) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (integrated in CPU) + 1 x PCIe 3.0 x1 slot |
| Graphics Output | Integrated AMD Radeon™ Support (1 x HDMI 2.1, 2 x DisplayPort 1.4) |
| Wired Network | Realtek 2.5GbE LAN Chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | Realtek Wi-Fi 6E RTL8852CE (2.4/5/6 GHz Tri-Band) + Bluetooth 5.3 |
| USB Connectivity | USB 3.2 Gen 1 (Front & Rear Type-C, Rear Type-A ports), USB 2.0/1.1 ports |
| BIOS & Features | Q-Flash Plus Button, PCIe EZ-Latch, Smart Fan 6, RGB Fusion (ARGB headers) |
| Audio | Realtek High Definition Audio (7.1-Channel) CODEC |
| Body Color | Black |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
