Gigabyte B760M GAMING AX (1.0) (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard #B760M G AX
18,700.00৳
Description
Product Overview

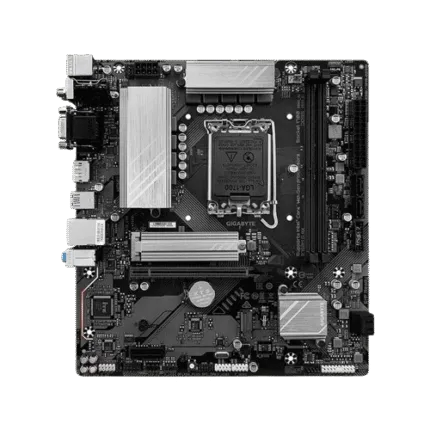

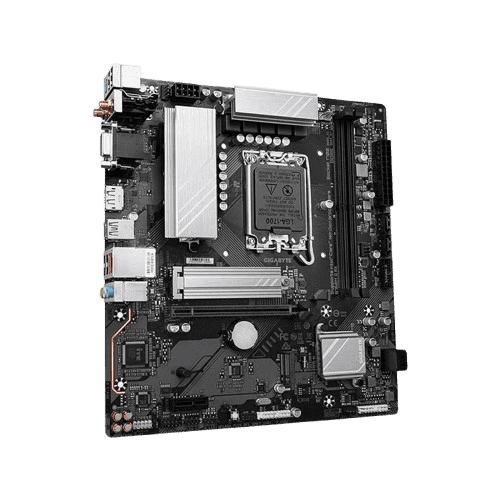

The Gigabyte B760M GAMING AX (rev. 1.0) is a high-performance Micro-ATX motherboard built on the Intel B760 Express chipset with the LGA1700 socket. Designed to support 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, it offers a future-proof, feature-loaded foundation for small-form-factor gaming rigs and high-performance creative workstations.
Featuring a 6+1+1 Phases Hybrid Digital VRM design with dedicated VRM thermal heatsinks, the motherboard delivers clean, steady power and efficient cooling during intense gaming sessions. It includes two DDR5 DIMM slots supporting up to 128GB of dual-channel system memory with high-speed memory overclocking capabilities reaching up to 8000 MT/s (O.C.) and full Intel® XMP profile support. For rapid storage, the board houses dual PCIe 4.0 x4 M.2 slots alongside four SATA 6Gb/s ports.
Built around Gigabyte Ultra Durable™ standards, it features PCIe EZ-Latch for toolless graphics card removal, Q-Flash Plus for driverless BIOS updates (without CPU, RAM, or GPU installed), and Smart Fan 6 thermal management. Connectivity is outstanding, featuring integrated Wi-Fi 6E (802.11ax), Bluetooth 5.3, and Realtek 2.5GbE LAN for ultra-fast online gaming and streaming. Multi-display connectivity (HDMI 2.1 and DisplayPort 1.4) and onboard ARGB headers complete the package, backed by a 3-year official brand warranty.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B760M GAMING AX (rev. 1.0) |
| Chipset | Intel B760 Express |
| CPU Socket | LGA1700 |
| Processor Support | 12th, 13th, and 14th Generation Intel Core / Pentium Gold / Celeron Processors |
| Form Factor | Micro-ATX (24.4cm x 22.5cm) |
| Power Delivery | 6+1+1 Phases Hybrid Digital VRM with Dedicated VRM Heatsinks |
| Memory Type | DDR5 SDRAM |
| Memory Slots | 2 x DDR5 DIMM Slots |
| Max Memory Capacity | Up to 128GB (Dual-Channel Architecture, up to 8000+ MHz O.C., XMP Supported) |
| Storage Connectors | 2 x M.2 Slots (PCIe 4.0 x4) + 4 x SATA 6Gb/s ports |
| Expansion Slots | 1 x PCIe 4.0 x16 slot + 1 x PCIe 3.0 x1 slot |

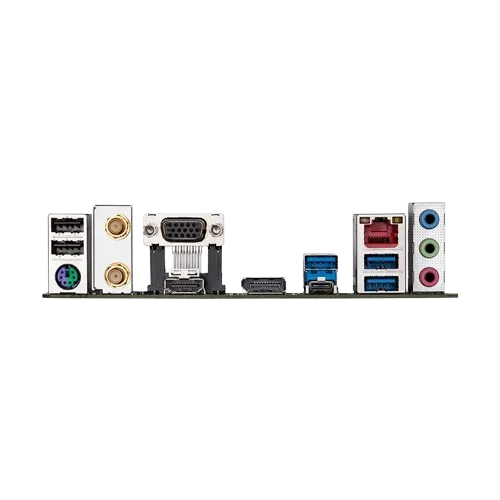

| Graphics Output | Integrated Intel HD Graphics support (1 x HDMI 2.1, 1 x DisplayPort 1.4) |
| Wired Network | Realtek 2.5GbE LAN Chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | Realtek Wi-Fi 6E (802.11ax 2.4/5/6 GHz Tri-Band) + Bluetooth 5.3 |
| USB Connectivity | USB 3.2 Gen 1 (Front Type-C & Rear Type-A ports), USB 2.0/1.1 ports |
| BIOS & Features | Q-Flash Plus Button, PCIe EZ-Latch, Smart Fan 6, RGB Fusion (ARGB headers) |
| Audio | Realtek High Definition Audio (7.1-Channel) CODEC with Audio Noise Guard |
| Body Color | Black |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
