Description
Product Overview

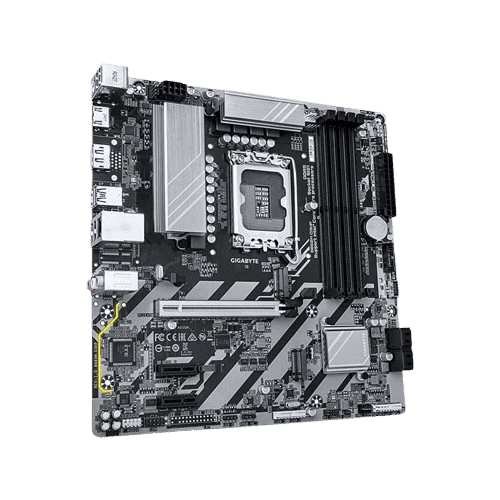

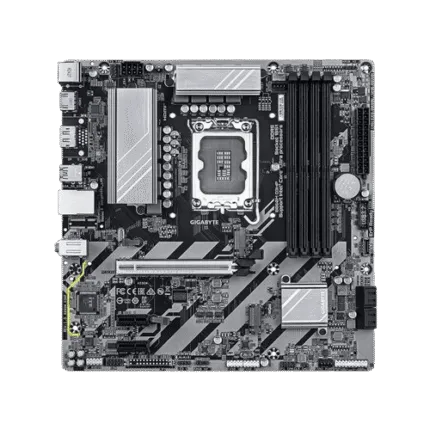

The Gigabyte B860M D3HP is a mainstream Micro-ATX motherboard designed around the Intel B860 Express chipset. Equipped with the LGA1851 socket, it supports Intel® Core™ Ultra Desktop Processors, providing a future-proof and power-efficient foundation for home, office, and light gaming builds.
Featuring a 6+2+1 Hybrid Digital VRM Design with heatsink cooling, the board ensures clean power delivery and system stability during heavy multitasking. It comes equipped with four DDR5 DIMM slots supporting up to 256GB of dual-channel system memory with high-speed Extreme Memory Profile (Intel® XMP) support.
For expansion and storage, the motherboard includes a primary PCIe 5.0 x16 slot for modern discrete graphics cards, dual PCIe 4.0 M.2 slots for high-speed NVMe SSDs, and four SATA 6Gb/s ports. Display connectivity supports dual-monitor setups via HDMI 2.1 and DisplayPort 2.1.
Built under Gigabyte Ultra Durable™ quality standards, it incorporates PCIe EZ-Latch for easy GPU removal, Q-Flash Plus for driverless BIOS updates, Smart Fan 6 thermal control, and dependable Realtek Gigabit LAN networking.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B860M D3HP |
| Chipset | Intel B860 Express |
| CPU Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Series Processors |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Power Delivery | 6+2+1 Hybrid Phases Digital Power with VRM Thermal Heatsink |
| Memory Type | DDR5 SDRAM |
| Memory Slots | 4 x DDR5 DIMM Slots |
| Max Memory Capacity | Up to 256GB (Dual-Channel Architecture, Intel® XMP Supported) |
| Storage Connectors | 2 x M.2 Slots (PCIe 4.0 x4) + 4 x SATA 6Gb/s ports (RAID 0, 1, 5, 10) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (integrated in CPU) + 2 x PCIe 3.0 x1 slots |
| Graphics Output | Integrated Intel® HD Graphics Support (1 x HDMI 2.1, 1 x DisplayPort 2.1) |
| Wired Network | Realtek GbE LAN Chip (1 Gbps / 100 Mbps / 10 Mbps) |
| Wireless & Bluetooth | None (Wired Ethernet LAN only) |
| USB Connectivity | Front: USB Type-C (3.2 Gen 1) & USB 3.2 headers; Rear: 3 x USB 3.2 Gen 1, 3 x USB 2.0 |
| BIOS & Features | Q-Flash Plus, PCIe EZ-Latch, Smart Fan 6, RGB Fusion (RGB/ARGB headers) |
| Audio | Realtek High Definition Audio CODEC (7.1-Channel) |
| Body Color | Black |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
