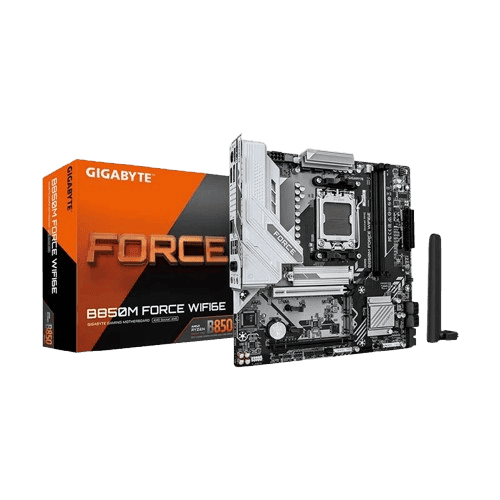

Gigabyte B850M FORCE (1.0/1.1) (Wi-Fi 6E) DDR5 AMD AM5 Socket Gaming Motherboard
Your Delivery options
Courier delivery
Courier will deliver to the specified address
2-3 days From 120BDT
Gigabyte B850M FORCE (1.0/1.1) (Wi-Fi 6E) DDR5 AMD AM5 Socket Gaming Motherboard #B850M FORCE WF6E / B850M FORCE WIFI6E
21,400.00৳
Description
Product Overview
The Gigabyte B850M FORCE (1.0/1.1) (Wi-Fi 6E) is a high-performance Micro-ATX gaming motherboard built on the AMD B850 chipset. Designed for the Socket AM5 platform, it natively supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors, offering a feature-rich and future-ready setup for compact gaming rigs and workstation builds.
Featuring an 8+2+2 Phase Digital VRM Design with enlarged heatsinks, this board delivers stable power and low temperatures during demanding gaming sessions and multi-threaded workloads. Designed with two DDR5 DIMM slots tuned for signal integrity, it supports up to 128GB of system memory with extreme memory overclocking capability (up to 9600+ MT/s) via AMD EXPO™ and Intel® XMP profiles.
For next-gen expansion, it includes a primary PCIe 5.0 x16 graphics card slot alongside three M.2 slots (including PCIe 5.0 x4 support) and four SATA 6Gb/s ports. Networking is equipped with Wi-Fi 6E (802.11ax), Bluetooth 5.3, and Realtek 2.5GbE LAN for low-latency online gaming and streaming.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B850M FORCE (1.0/1.1) (Wi-Fi 6E) / B850M FORCE WF6E |
| Chipset | AMD B850 |
| CPU Socket | Socket AM5 |
| Processor Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Power Delivery | 8+2+2 Phase Digital Power Solution with Enlarged Thermal Heatsinks |
| Memory Type | DDR5 SDRAM |
| Memory Slots | 2 x DDR5 DIMM Slots (Dual-Channel Architecture) |
| Max Memory Capacity | Up to 128GB (up to 9600+ MHz O.C., AMD EXPO™ & Intel® XMP Supported) |
| Storage Connectors | 3 x M.2 Slots (1x PCIe 5.0 x4 + 2x PCIe 4.0 x4/x2) + 4 x SATA 6Gb/s ports |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (integrated in CPU) + 1 x PCIe 4.0 x16 slot (running at x4) |
| Graphics Output | Integrated AMD Radeon™ Support (1 x HDMI 2.1, 1 x DisplayPort 1.4) |
| Wired Network | Realtek 2.5GbE LAN Chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | MediaTek Wi-Fi 6E MT7902 (Tri-Band 2.4/5/6 GHz) + Bluetooth 5.3 |
| USB Connectivity | Rear: USB Type-C (3.2 Gen 1), USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0; Front: USB-C & USB 3.2 headers |
| BIOS & Features | Q-Flash Plus Button, PCIe EZ-Latch, Smart Fan 6, RGB Fusion (RGB/ARGB Gen2 headers) |
| Audio | Realtek High Definition Audio CODEC (7.1-Channel) |
| Body Color | Black & White Accent Design |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
