Gigabyte B860M GAMING (Wi-Fi 6) DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard
Your Delivery options
Courier delivery
Courier will deliver to the specified address
2-3 days From 120BDT
Gigabyte B860M GAMING (Wi-Fi 6) DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard #B860M GAMING WIFI6
24,900.00৳
Description
Product Overview

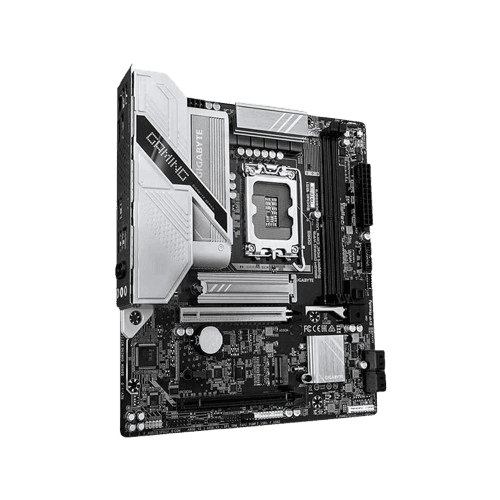

The Gigabyte B860M GAMING (Wi-Fi 6) is a feature-packed Micro-ATX gaming motherboard built on the Intel B860 Express chipset. Featuring the LGA1851 socket, it supports Intel® Core™ Ultra Desktop Processors (Series 2), making it a fast and reliable choice for modern gaming builds, content creation, and everyday high-performance computing.
Power delivery is backed by an 8+1+2 Phase Hybrid VRM Design with VRM Thermal Armor Advanced heatsinks to keep operational temperatures low under heavy gaming workloads. It features two DDR5 DIMM slots supporting up to 128GB of dual-channel memory with extreme overclocking capability (up to 9066+ MT/s) via Intel® XMP 3.0 profiles.
For storage and graphics expansion, the motherboard includes a primary PCIe 5.0 x16 graphics card slot reinforced with PCIe UD stainless-steel shielding, alongside dual M.2 slots (one PCIe 5.0 x4 and one PCIe 4.0 x4) and four SATA 6Gb/s connectors.
Connectivity is equipped with integrated Wi-Fi 6 (802.11ax), Bluetooth 5.3, and Realtek 2.5GbE LAN for ultra-fast, low-latency online gaming. Build-friendly features such as PCIe EZ-Latch, M.2 EZ-Latch, WIFI EZ-Plug, and Q-Flash Plus ensure a hassle-free PC assembly experience.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B860M GAMING (Wi-Fi 6) / B860M GAMING WIFI6 |
| Chipset | Intel B860 Express |
| CPU Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Form Factor | Micro-ATX (24.4cm x 22.5cm) |
| Power Delivery | 8+1+2 Phase Hybrid Digital VRM Solution with Thermal Armor Heatsink |
| Memory Type | DDR5 SDRAM |
| Memory Slots | 2 x DDR5 DIMM Slots (Dual-Channel Architecture) |
| Max Memory Capacity | Up to 128GB (up to 9066+ MHz O.C., Intel® XMP 3.0 Supported) |
| Storage Connectors | 2 x M.2 Slots (1x PCIe 5.0 x4 + 1x PCIe 4.0 x4) + 4 x SATA 6Gb/s ports |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (PCIe UD Slot) + 1 x PCIe 4.0 x16 slot (running at x4) |
| Graphics Output | Integrated Intel® HD Graphics Support (1 x HDMI 2.1, 1 x DisplayPort 2.1) |
| Wired Network | Realtek 2.5GbE LAN Chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | Realtek Wi-Fi 6 (802.11ax Dual-Band 2.4/5 GHz) + Bluetooth 5.3 |

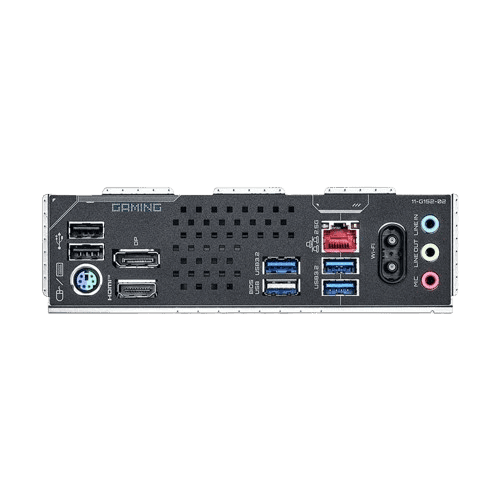

| USB Connectivity | Front: USB Type-C (3.2 Gen 1) & USB 3.2 Gen 1 headers; Rear: 3 x USB 3.2 Gen 1, 3 x USB 2.0 |
| BIOS & Features | Q-Flash Plus Button, PCIe EZ-Latch, M.2 EZ-Latch, WIFI EZ-Plug, Smart Fan 6 |
| Audio | Realtek High Definition Audio CODEC (7.1-Channel) |
| Body Color | Black & Silver |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
