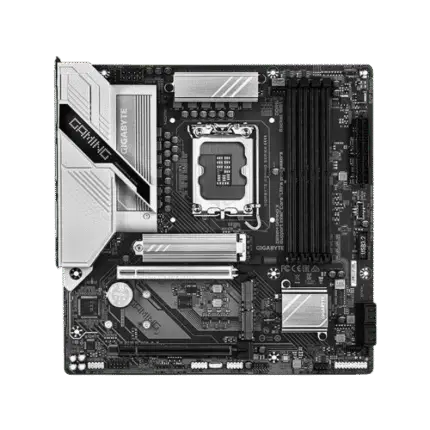

Gigabyte Z890M GAMING X DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard
Your Delivery options
Courier delivery
Courier will deliver to the specified address
2-3 days From 120BDT
Gigabyte Z890M GAMING X DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard #Z890M GAMING X
Description
Product Overview
The Gigabyte Z890M GAMING X is a feature-packed Micro-ATX gaming motherboard built on Intel’s enthusiast Z890 Express chipset. Utilizing the LGA1851 socket, it is specifically engineered to support Intel® Core™ Ultra Desktop Processors (Series 2), delivering high efficiency and exceptional speed for compact gaming builds and high-performance workstations.
Equipped with a 12+1+2 Twin Digital VRM Design (60A DrMOS) shielded by enlarged VRM heatsinks, the motherboard maintains stable power delivery and controlled temperatures even under heavy gaming loads or CPU-intensive multitasking. It features four DDR5 DIMM slots supporting up to 256GB of dual-channel system memory with extreme memory overclocking (up to 8800+ MT/s O.C.) via Intel® XMP 3.0 and CUDIMM module support.
Expansion and storage capabilities include a primary PCIe 5.0 x16 graphics card slot with PCIe UD stainless-steel reinforcement, alongside three M.2 slots (one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots) protected by M.2 Thermal Guard heatsinks, plus four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support.
High-speed wired networking is driven by Realtek 2.5GbE LAN for low-latency online play. Builder-friendly EZ-Latch innovations—including PCIe EZ-Latch, M.2 EZ-Latch, Q-Flash Plus, and Smart Fan 6 thermal management—make PC assembly and setup seamless.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte Z890M GAMING X |
| Chipset | Intel Z890 Express |
| CPU Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Power Delivery | 12+1+2 Twin Digital VRM Design (60A DrMOS) with VRM Thermal Armor |
| Memory Type | DDR5 SDRAM (CUDIMM / Non-ECC Unbuffered Supported) |
| Memory Slots | 4 x DDR5 DIMM Slots (Dual-Channel Architecture) |
| Max Memory Capacity | Up to 256GB (Supports up to 8800+ MT/s O.C., Intel® XMP 3.0) |
| Storage Connectors | 3 x M.2 Slots (1x PCIe 5.0 x4 + 2x PCIe 4.0 x4) + 4 x SATA 6Gb/s ports (RAID 0, 1, 5, 10) |
| Expansion Slots | 1 x PCIe 5.0 x16 primary slot (PCIe UD) + 1 x PCIe 4.0 x16 slot (running at x4) |
| Graphics Output | Integrated Intel® HD Graphics (1 x HDMI 2.1, 2 x DisplayPort 1.4) |
| Wired Network | Realtek 2.5GbE LAN Chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | No (Onboard Wi-Fi / Bluetooth module not included on standard GAMING X) |

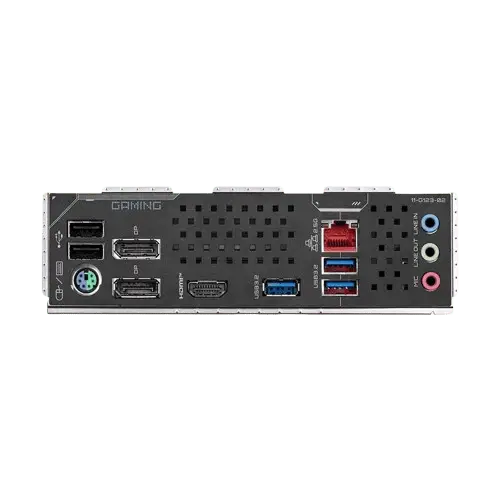

| USB Connectivity | Rear: USB 3.2 Gen 2 Type-A (Red), USB 3.2 Gen 1, USB 2.0, PS/2 port; Front: USB-C header |
| BIOS & Features | Q-Flash Plus Button, PCIe EZ-Latch, M.2 EZ-Latch, Smart Fan 6, RGB Fusion |
| Audio | Realtek High Definition Audio CODEC (7.1-Channel) with Audio Capacitors |
| Body Color | Black & Silver |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
