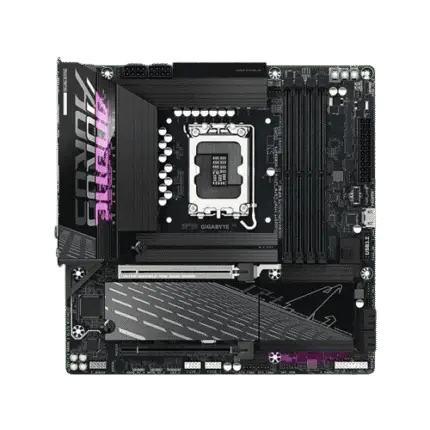

Gigabyte B860M AORUS ELITE (Wi-Fi 6E) DDR5 (Intel Core Ultra LGA1851 Socket) Gaming Motherboard
Your Delivery options
Courier delivery
Courier will deliver to the specified address
2-3 days From 120BDT
Gigabyte B860M AORUS ELITE (Wi-Fi 6E) DDR5 (Intel Core Ultra LGA1851 Socket) Gaming Motherboard #B860M A ELITE WIFI6E / B860M AORUS ELITE WIFI6E
32,800.00৳
Description
Product Overview
The Gigabyte B860M AORUS ELITE (Wi-Fi 6E) is a premium Micro-ATX gaming motherboard built on Intel’s mainstream B860 Express chipset. Utilizing the modern LGA1851 socket, it natively supports Intel® Core™ Ultra Desktop Processors (Series 2), delivering a high-performance, future-ready platform ideal for compact gaming PCs, high-framerate esports builds, and intense multitasking setups.
Power stability is provided by a robust 12+1+1 Digital Twin VRM Design (60A DrMOS) with 6-layer mid-loss PCB construction, protected by VRM Thermal Armor Advanced heatsinks to keep operating temperatures low under maximum CPU boost clocks. It features four DDR5 DIMM slots supporting up to 256GB of dual-channel system memory with high-speed memory tuning (up to 9066+ MT/s O.C.) enhanced by AI-driven D5 Bionic Corsa optimizations and Intel® XMP 3.0 support.
For storage and GPU expansion, the motherboard offers a primary PCIe 5.0 x16 graphics card slot protected by PCIe UD stainless-steel armor, alongside three M.2 slots (one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots) covered by enlarged M.2 Thermal Guard heatsinks, plus four SATA 6Gb/s ports with RAID support.
Networking is top-tier with onboard Tri-Band Wi-Fi 6E (2.4 / 5 / 6 GHz) featuring a magnetic WIFI EZ-Plug antenna, Bluetooth 5.3, and Realtek 2.5GbE LAN for lag-free online gaming. DIY-friendly assembly solutions include PCIe EZ-Latch Plus, M.2 EZ-Latch Click, M.2 EZ-Latch Plus, Q-Flash Plus, and Smart Fan 6.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B860M AORUS ELITE (Wi-Fi 6E) / B860M A ELITE WIFI6E |
| Chipset | Intel B860 Express |
| CPU Socket | LGA1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Power Delivery | 12+1+1 Twin Digital VRM Design (60A DrMOS) with VRM Thermal Armor Advanced |
| Memory Type | DDR5 SDRAM (CUDIMM / Non-ECC Unbuffered Supported) |
| Memory Slots | 4 x DDR5 DIMM Slots (Dual-Channel Architecture) |
| Max Memory Capacity | Up to 256GB (Supports up to 9066+ MT/s O.C., Intel® XMP 3.0 & D5 Bionic Corsa) |
| Storage Connectors | 3 x M.2 Slots (1x PCIe 5.0 x4 + 2x PCIe 4.0 x4) + 4 x SATA 6Gb/s ports (RAID 0, 1, 5, 10) |
| Expansion Slots | 1 x PCIe 5.0 x16 primary slot (PCIe UD Armor) + 1 x PCIe 4.0 x16 slot (running at x4) |
| Graphics Output | Integrated Intel® HD Graphics (1 x HDMI 2.1, 1 x DisplayPort 1.4) |
| Wired Network | Realtek 2.5GbE LAN Chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | Tri-Band Wi-Fi 6E (2.4 / 5 / 6 GHz) + Bluetooth 5.3 |
| USB Connectivity | Rear: USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0; Front: USB-C 10Gbps header |
| BIOS & Features | Q-Flash Plus Button, PCIe EZ-Latch Plus, M.2 EZ-Latch Click/Plus, Smart Fan 6, RGB Fusion |
| Audio | Realtek High Definition Audio CODEC (7.1-Channel) with Premium Audio Capacitors |
| Body Color | Black |
| Supported OS | Windows 11 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
