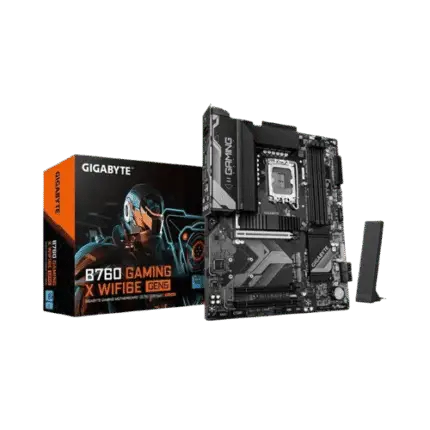

Gigabyte B760 GAMING X GEN5 (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
Your Delivery options
Courier delivery
Courier will deliver to the specified address
2-3 days From 120BDT
Gigabyte B760 GAMING X GEN5 (Wi-Fi 6E) DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
26,500.00৳
Description
Product Overview
The Gigabyte B760 GAMING X GEN5 (Wi-Fi 6E) is a full-sized ATX gaming motherboard built on the Intel B760 Express chipset. Designed for the LGA1700 socket, it offers native compatibility with 12th, 13th, and 14th Generation Intel® Core™, Pentium® Gold, and Celeron® processors. It provides a reliable, future-proof base for high-performance gaming rigs, content creation workstations, and multitasking setups.
It features an 8+1+1 Hybrid Phase Digital VRM design (60A DrMOS) backed by VRM Thermal Armor Advanced heatsinks, maintaining steady power delivery and controlled temperatures during intense workloads. Equipped with four DDR5 DIMM slots, it supports up to 256GB of dual-channel system memory with high-speed Extreme Memory Profile (Intel® XMP 3.0) overclocking support.
For expansion, it provides a primary PCIe 5.0 x16 graphics card slot reinforced with PCIe UD stainless-steel armor. High-speed storage is covered by three PCIe 4.0 x4 M.2 slots protected by thermal guards, along with four SATA 6Gb/s ports featuring RAID support.
Networking includes Intel Wi-Fi 6E AX210 (supporting the dedicated 6GHz band), Bluetooth 5.3, and Realtek 2.5GbE LAN for ultra-fast, low-latency connectivity. DIY-friendly additions like PCIe EZ-Latch, WIFI EZ-Plug, WIFI Compass, Q-Flash Plus, and Smart Fan 6 make installation and system management straightforward.
Detailed Technical Specifications
| Feature / Attribute | Product Specifications |
| Brand | Gigabyte |
| Model | Gigabyte B760 GAMING X GEN5 (Wi-Fi 6E) / B760 GAMING X WIFI6E GEN5 |
| Chipset | Intel B760 Express |
| CPU Socket | LGA1700 |
| Processor Support | 12th, 13th, and 14th Gen Intel Core / Pentium Gold / Celeron Processors |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Power Delivery | 8+1+1 Hybrid Phase Digital VRM (60A DrMOS) with VRM Thermal Armor Advanced |
| Memory Type | DDR5 SDRAM |
| Memory Slots | 4 x DDR5 DIMM Slots |
| Max Memory Capacity | Up to 256GB (Dual-Channel Architecture, up to 7600+ MHz O.C., Intel® XMP 3.0) |
| Storage Connectors | 3 x M.2 Slots (PCIe 4.0 x4/x2) + 4 x SATA 6Gb/s ports (RAID 0, 1, 5, 10 supported) |
| Expansion Slots | 1 x PCIe 5.0 x16 primary slot (PCIe UD) + 2 x PCIe 3.0 x16 slots (running at x1) |
| Graphics Output | Integrated Intel® HD Graphics Support (1 x HDMI 2.1, 1 x DisplayPort 1.2) |
| Wired Network | Realtek 2.5GbE LAN Chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | Intel Wi-Fi 6E AX210 (2.4 / 5 / 6 GHz Tri-Band) + Bluetooth 5.3 |

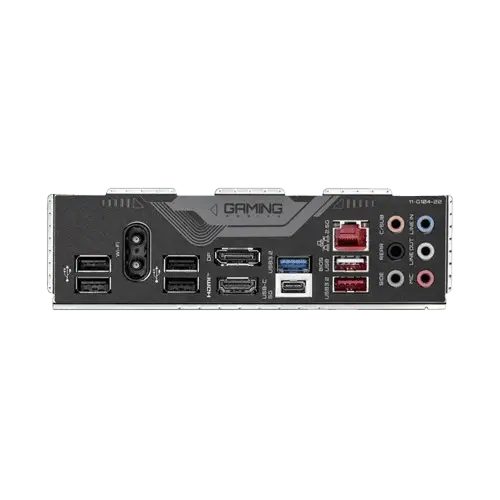

| USB Connectivity | Rear: USB 3.2 Gen 2 Type-A, USB Type-C (3.2 Gen 1), USB 3.2 Gen 1, USB 2.0; Front: USB-C 10Gb/s header |
| BIOS & Features | Q-Flash Plus, PCIe EZ-Latch, WIFI EZ-Plug, WIFI Compass, Smart Fan 6, RGB Fusion |
| Audio | Realtek High Definition Audio CODEC (7.1-Channel) |
| Body Color | Black |
| Supported OS | Windows 11 (64-bit), Windows 10 (64-bit) |
| Warranty | 3 Years Official Brand Warranty |
